Exterior Venetian Blinds

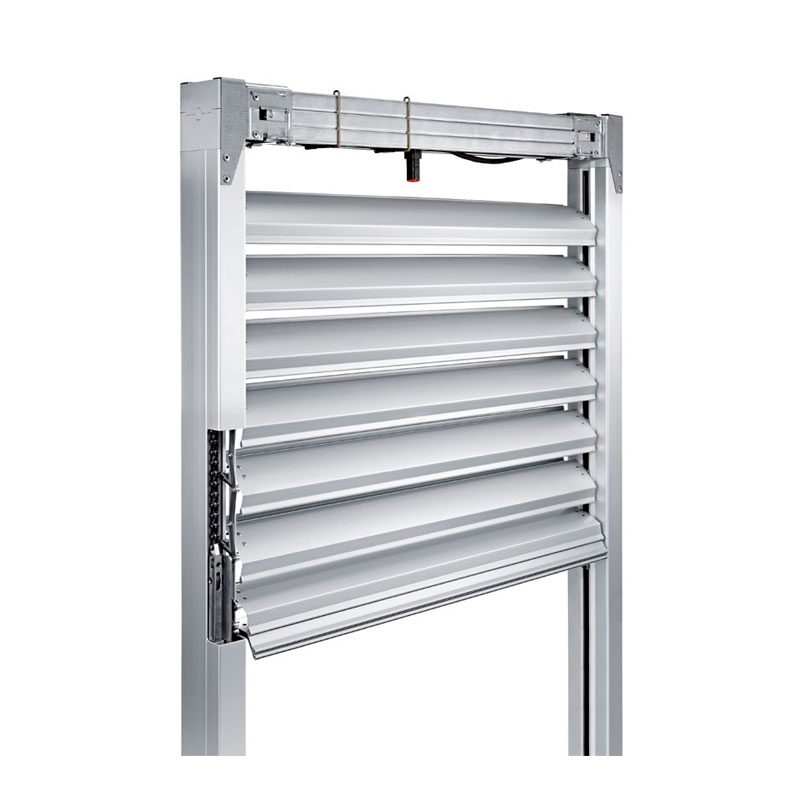

Secure Venetian sunblind



The exterior venetian blind offering the highest security. Maximum solar control, superior security, and impeccable design. Its innovative adjustment system within the guides allows the slats to be oriented with total precision, achieving the perfect balance between solar control, security, and aesthetics. Thanks to its direct adjustment in the guides, the user has complete control over the orientation of the slats.



Light Efficiency: Increases the use of natural light by up to 50% and reduces glare by 25%, thanks to the design of its slats that reflect sunlight toward the ceiling.

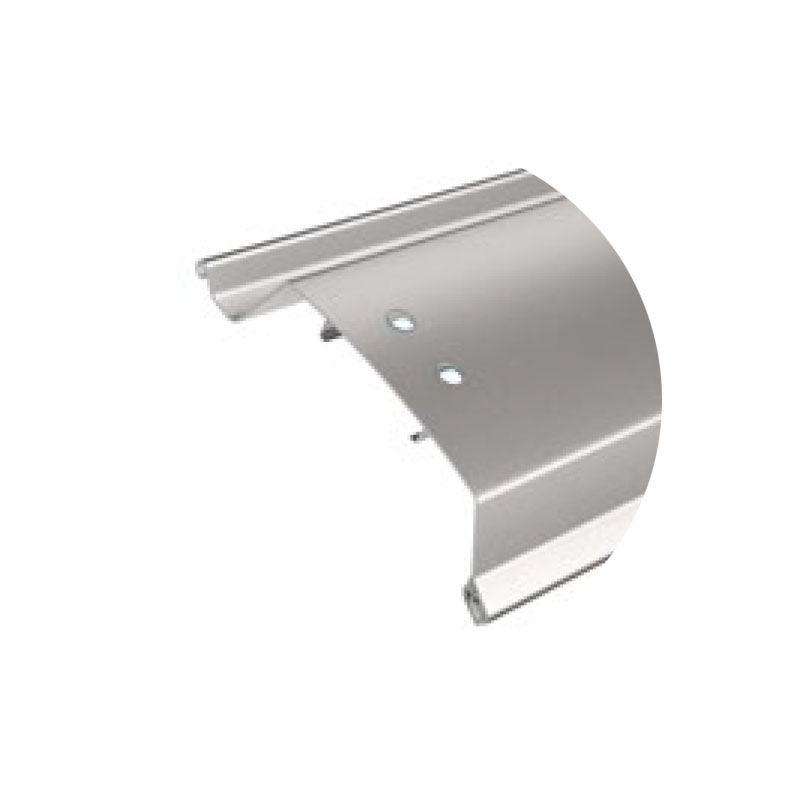

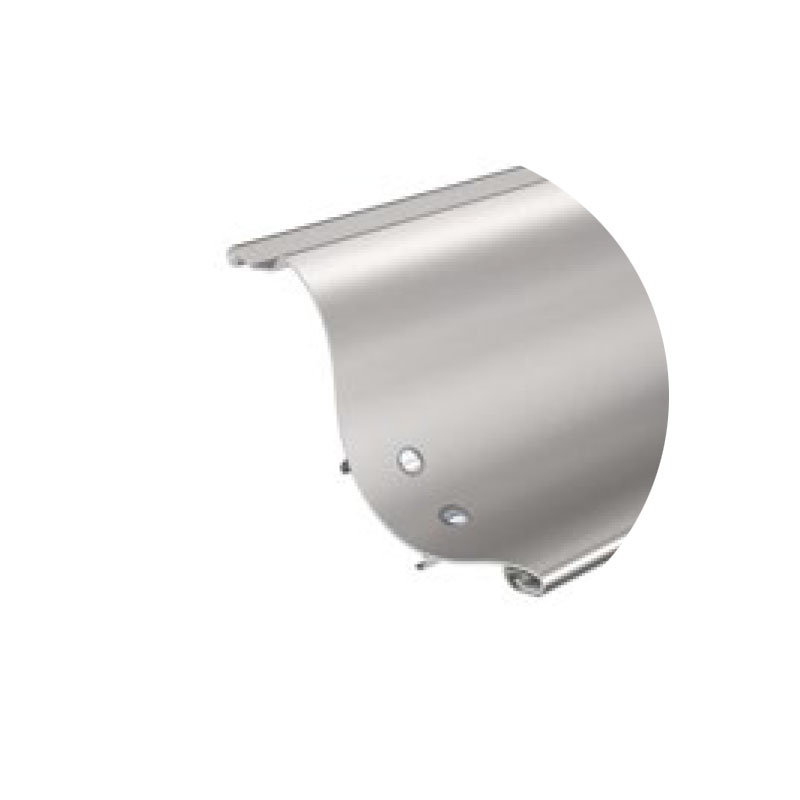

Design and Robustness: The unique "S" curvature of the slats offers a distinctive aesthetic value for the facade and, at the same time, improves its mechanical resistance.

Positioning: High-end solution that integrates optimized performance, consolidating itself as the reference option in its category.

Lintel Dimensions (mm)

Clear Height (ch) Retracted Height (rh)
                               Manual/Motorized
600-1000 245
1001-1250 265
1251-1500 290
1501-1750 320
1751-2000 345
2001-2250 375
2251-2500 395
2501-2750 425
2751-3000 450
3001-3250 470
3251-3500 500
3501-3750 525
3751-4000 550
For versions with gallery, add an additional 5 mm.

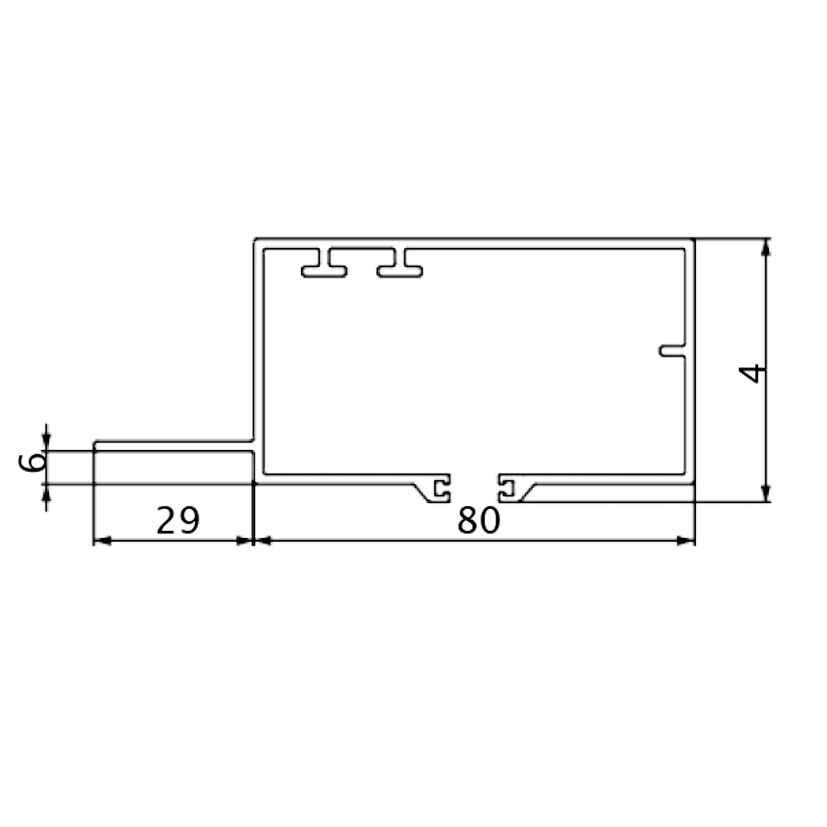

Technical Dimensions

  Individual Coupled
Manual Motorized Manual Motorized
Min. Clear Height (ch) 0.56 m 0.56 m 0.56 m 0.56 m
Max. Clear Height (ch) 4.00 m 4.00 m 4.00 m 4.00 m
Min. Construction Width (cw) 0.60 m 0.60 m 0.60 m 0.60 m
Maximum Area 8.00 m² 8.00 m² 8.00 m² 20.00 m²
